Antal Full Batten - Receptacles, Batten Ø 12 - 90mm
来自 Antal
Original price
$1,112.00
-
Original price
$1,112.00
Original price
$1,112.00
$1,112.00
-
$1,112.00
Current price
$1,112.00
库存量单位 Q-ANT-609320

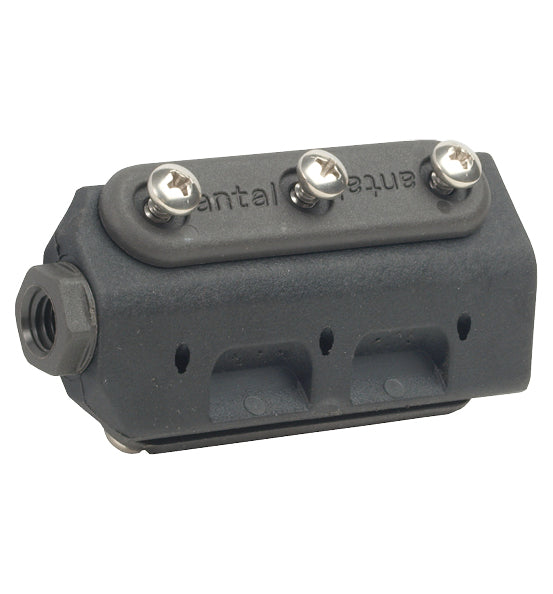

Receptacle L 90, Batten Ø 12
Model: 609.320
The SBR is different from standard batten receptacles in that it fits inside the batten pocket, making it invisible on the outside except for the small fastening plate - thereby almost completely eliminating chafe on the mast and rigging. Moreover the batten will be not on one side, but perfectly in the middle.
Each SBR includes: the main body; side plates to fix the receptacle to the sail; trimming screw for batten compression; the cap with a threaded hole to screw the receptacle in the toggle of the batten slider.
Techical Details
| ATTRIBUTE | VALUE |
|---|---|
| Length (L) | 90 mm |
| Height (H) | 44 mm |
| Batten dimensions | Ø 12 mm |
| Weight | 0,08 kg |
| Material | Resin |
| Fixing screws | 6 |
