Antal Headboard 40° for Track 24x16

by Antal
Original price $720.00 - Original price $720.00
Original price
$720.00 - $720.00
Current price $720.00

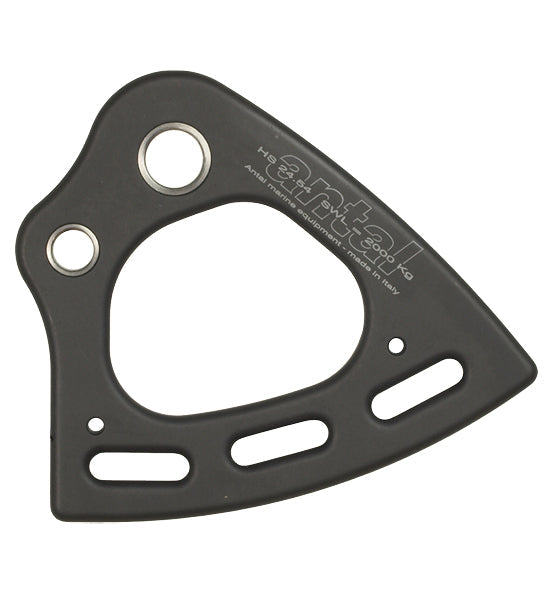

Headboard 40°, Track 24x16, for Racing Boats up to 50'

Model: HS24.54

The headboard sewed with webbings attaches the headboard slider to the sail top. Each headboard has a hole for the connection to the slider and one for the connection to the halyard. All components’ dimension and the distances of the sail from the mast are found in the sheet Full Batten Systems – Measures.

Angle. Depending on the angle of the mainsail top you will want to choose among headboards’ angles of 40°, 60° or 90°. To half loads on the mainsail halyard one may use small dimensions high load blocks, with control 2:1. The most suitable blocks for halyards are Snatch loopers and Twin halyard blocks. The connection between headboard and headboard slider is made more efficient with a Fast release push pin, which allows quick and precise coupling of the parts.


2D  Drawing

Techical Details

Headboard degrees 40°
Width (W) 147 mm
Height (H) 136,15 mm
Track dimensions 24x16
Weight 0,19 kg
SWL 2000 kg
d 12 mm
Pin (D) 17 mm
G 8 mm
g 8 mm
L 25 mm
